Aim:
This assignment is intended to provide basic experience in writing neural network applications and conducting
classification experiments with mlps. After having completed this assignment you should know how to implement a
back propagation multi-layer neural network which can be used for a variety of classification tasks.
Preliminaries:
Read through the lecture notes on back propagation neural networks, paying particular attention to the feed forward
classification algorithm and the back propagation learning algorithm. To assist with this assignment a 2 layer back
propagation neural network written in C++ is provided in the file mlp.cpp. Please study this program in context with
the lecture notes so that you thoroughly understand its operation. A number of training data files are also provided for
you to experiment with. Make note of how the mlp's parameters are read from the data file. Before commencing any
coding, compile and run the given MLP with the data to confirm that it works. You should notice that the mlp is able
to converge on some of the data sets with relatively low error rates but on other datasets the 2 layer mlp performs
poorly.
Assignment Specification:
Your main task in this assignment is to implement selectable ordering of the training data and make the net more
powerful by enabling the mlp to be configured as a 2, 3 or 4 layer mlp with a specified number of neurons in each
layer and to use the mlp to classify all the given data. You are to also provide a test function so that the mlp can learn
training data and be tested with different test data. For this assignment you can write and compile your code on PC or
UNIX platforms. To complete this assignment it is recommended you follow the steps below.
Step 1: (3 marks) To improve mlp training, implement an option for providing selectable ordering of the training
data. The "Ordering" parameter should be added to the definition header of the training data files after ObjErr. e.g.:
Mtm1: 1.2
Mtm2: 0.4
ObjErr: 0.005
Ordering: 1
"Ordering" determines which training pattern is selected each training iteration (epoch). The options are:
Always uses the same given order of training patterns.
Make completely different (random) order each iteration (i.e. new permutation).
Random permutation at start. After each epoch, two random patterns are exchanged.
for i=0; i<(N-1); i++
Select a random pattern.
If it was wrongly classified last time use it
if no wrong pattern was selected choose use the first one.
Tip: Try using an index array to rearrange the selection order, or to select the next pattern.
0 Fixed
1 Random
2 Random Swap
3,4.. Random N
Assignment Image
![Other Assignment Description Image [Solution]](/images_solved/082381/2/im.webp)

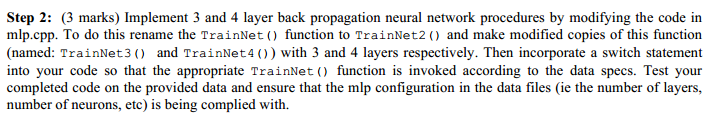

Step 2: (3 marks) Implement 3 and 4 layer back propagation neural network procedures by modifying the code in
mlp.cpp. To do this rename the TrainNet() function to TrainNet2 () and make modified copies of this function
(named: TrainNet3 () and TrainNet 4 ()) with 3 and 4 layers respectively. Then incorporate a switch statement
into your code so that the appropriate TrainNet () function is invoked according to the data specs. Test your
completed code on the provided data and ensure that the mlp configuration in the data files (ie the number of layers,
number of neurons, etc) is being complied with.
Assignment Image
![Other Assignment Description Image [Solution]](/images_solved/082381/3/im.webp)

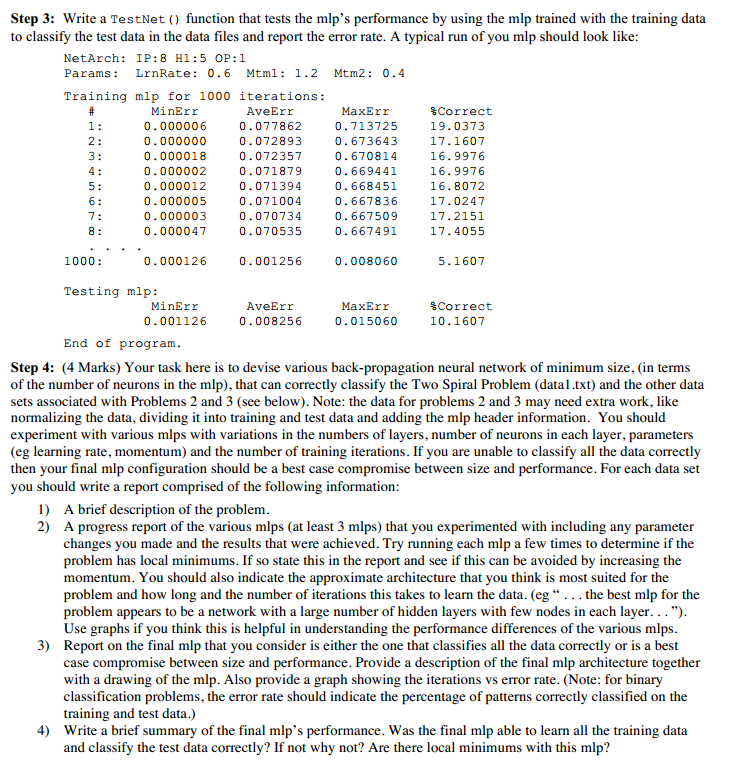

Step 3: Write a TestNet () function that tests the mlp's performance by using the mlp trained with the training data
to classify the test data in the data files and report the error rate. A typical run of you mlp should look like:
NetArch: IP:8 H1:5 OP:1
Params: LrnRate: 0.6 Mtml: 1.2 Mtm2: 0.4
Training mlp for 1000 iterations:
#
MinErr
1:
2:
3:
4:
5:
6:
7:
8:
1000:
0.000006
0.000000
0.000018
0.000002
0.000012
0.000005
0.000003
0.00004
0.000126
Testing mlp:
MinErr
0.001126
AveErr
0.077862
0.072893
0.072357
0.071879
0.071394
0.071004
0.070734
0.070535
0.001256
AveErr
0.008256
MaxErr
0.713725
0.673643
0.670814
0.669441
0.668451
0.667836
0.667509
0.66749
0.008060
MaxErr
0.015060
Correct
19.0373
17.1607
16.9976
16.9976
16.8072
17.0247
17.2151
17.4055
5.1607
*Correct
10.1607
End of program.
Step 4: (4 Marks) Your task here is to devise various back-propagation neural network of minimum size, (in terms
of the number of neurons in the mlp), that can correctly classify the Two Spiral Problem (datal.txt) and the other data
sets associated with Problems 2 and 3 (see below). Note: the data for problems 2 and 3 may need extra work, like
normalizing the data, dividing it into training and test data and adding the mlp header information. You should
experiment with various mlps with variations in the numbers of layers, number of neurons in each layer, parameters
(eg learning rate, momentum) and the number of training iterations. If you are unable to classify all the data correctly
then your final mlp configuration should be a best case compromise between size and performance. For each data set
you should write a report comprised of the following information:
1) A brief description of the problem.
2) A progress report of the various mlps (at least 3 mlps) that you experimented with including any parameter
changes you made and the results that were achieved. Try running each mlp a few times to determine if the
problem has local minimums. If so state this in the report and see if this can be avoided by increasing the
momentum. You should also indicate the approximate architecture that you think is most suited for the
problem and how long and the number of iterations this takes to learn the data. (eg "... the best mlp for the
problem appears to be a network with a large number of hidden layers with few nodes in each layer...").
Use graphs if you think this is helpful in understanding the performance differences of the various mlps.
3) Report on the final mlp that you consider is either the one that classifies all the data correctly or is a best
case compromise between size and performance. Provide a description of the final mlp architecture together
with a drawing of the mlp. Also provide a graph showing the iterations vs error rate. (Note: for binary
classification problems, the error rate should indicate the percentage of patterns correctly classified on the
training and test data.)
4) Write a brief summary of the final mlp's performance. Was the final mlp able to learn all the training data
and classify the test data correctly? If not why not? Are there local minimums with this mlp?
Assignment Code
/************************************************************************
* mlp.cpp - Implements a multi-layer back-propagation neural network
* CSCI964/CSCI464 2-Layer MLP
* Ver1: Koren Ward - 15 March 2003
* Ver2: Koren Ward - 21 July 2003 - Dynamic memory added
* Ver3: Koren Ward - 20 March 2005 - Net paramaters in datafile added
* Ver4: Your Name - ?? April 2005 - 3, 4 & 5 layer mlp & test fn added
* ...
*************************************************************************/
#include<iostream>
#include<iomanip>
#include<fstream>
#include<cstdlib>
#include<cstdio>
#include<cmath>
#include<ctime>
using namespace std;
const int MAXN = 50; // Max neurons in any layer
const int MAXPATS = 5000; // Max training patterns
// mlp paramaters
long NumIts ; // Max training iterations
int NumHN ; // Number of hidden layers
int NumHN1 ; // Number of neurons in hidden layer 1
int NumHN2 ; // Number of neurons in hidden layer 2
int NumHN3 ; // Number of neurons in hidden layer 3
int NumHN4 ; // Number of neurons in hidden layer 4
float LrnRate; // Learning rate
float Mtm1 ; // Momentum(t-1)
float Mtm2 ; // Momentum(t-2)
float ObjErr,Oedering ; // Objective error
// mlp weights
float **w1,**w11,**w111;// 1st layer wts
float **w2,**w22,**w222;// 2nd layer wts
void TrainNet(float **x,float **d,int NumIPs,int NumOPs,int NumPats);
void TestNet(float **x,float **d,int NumIPs,int NumOPs,int NumPats);
float **Aloc2DAry(int m,int n);
void Free2DAry(float **Ary2D,int n);
int main(){
ifstream fin;
int i,j,NumIPs,NumOPs,NumTrnPats,NumTstPats,Ordering;
char Line[500],Tmp[20],FName[20];
cout<<"Enter data filename: ";
cin>>FName; cin.ignore();
fin.open(FName);
if(!fin.good()){cout<<"File not found!
";exit(1);}
//read data specs...
do{fin.getline(Line,500);}while(Line[0]==';'); //eat comments
sscanf(Line,"%s%d",Tmp,&NumIPs);
fin>>Tmp>>NumOPs;
fin>>Tmp>>NumTrnPats;
fin>>Tmp>>NumTstPats;
fin>>Tmp>>NumIts;
fin>>Tmp>>NumHN;
i=NumHN;
if(i-- > 0)fin>>Tmp>>NumHN1;
if(i-- > 0)fin>>Tmp>>NumHN2;
if(i-- > 0)fin>>Tmp>>NumHN3;
if(i-- > 0)fin>>Tmp>>NumHN4;
fin>>Tmp>>LrnRate;
fin>>Tmp>>Mtm1;
fin>>Tmp>>Mtm2;
fin>>Tmp>>ObjErr;
fin>>Tmp>>Oedering;
if( NumIPs<1||NumIPs>MAXN||NumOPs<1||NumOPs>MAXN||
NumTrnPats<1||NumTrnPats>MAXPATS||NumTrnPats<1||NumTrnPats>MAXPATS||
NumIts<1||NumIts>20e6||NumHN1<0||NumHN1>50||
LrnRate<0||LrnRate>1||Mtm1<0||Mtm1>10||Mtm2<0||Mtm2>10||ObjErr<0||ObjErr>10
){ cout<<"Invalid specs in data file!
"; exit(1); }
float **IPTrnData= Aloc2DAry(NumTrnPats,NumIPs);
float **OPTrnData= Aloc2DAry(NumTrnPats,NumOPs);
float **IPTstData= Aloc2DAry(NumTstPats,NumIPs);
float **OPTstData= Aloc2DAry(NumTstPats,NumOPs);
for(i=0;i<NumTrnPats;i++){
for(j=0;j<NumIPs;j++)
fin>>IPTrnData[i][j];
for(j=0;j<NumOPs;j++)
fin>>OPTrnData[i][j];
}
for(i=0;i<NumTstPats;i++){
for(j=0;j<NumIPs;j++)
fin>>IPTstData[i][j];
for(j=0;j<NumOPs;j++)
fin>>OPTstData[i][j];
}
fin.close();
TrainNet(IPTrnData,OPTrnData,NumIPs,NumOPs,NumTrnPats);
TestNet(IPTstData,OPTstData,NumIPs,NumOPs,NumTstPats);
Free2DAry(IPTrnData,NumTrnPats);
Free2DAry(OPTrnData,NumTrnPats);
Free2DAry(IPTstData,NumTstPats);
Free2DAry(OPTstData,NumTstPats);
cout<<"End of program.
";
system("PAUSE");
return 0;
}
void TrainNet(float **x,float **d,int NumIPs,int NumOPs,int NumPats ){
// Trains 2 layer back propagation neural network
// x[][]=>input data, d[][]=>desired output data
float *h1 = new float[NumHN1]; // O/Ps of hidden layer
float *y = new float[NumOPs]; // O/P of Net
float *ad1= new float[NumHN1]; // HN1 back prop errors
float *ad2= new float[NumOPs]; // O/P back prop errors
float PatErr,MinErr,AveErr,MaxErr; // Pattern errors
int p,i,j; // for loops indexes
long ItCnt=0; // Iteration counter
long NumErr=0; // Error counter (added for spiral problem)
cout<<"TrainNet2: IP:"<<NumIPs<<" H1:"<<NumHN1<<" OP:"<<NumOPs<<endl;
// Allocate memory for weights
w1 = Aloc2DAry(NumIPs,NumHN1);// 1st layer wts
w11 = Aloc2DAry(NumIPs,NumHN1);
w111 = Aloc2DAry(NumIPs,NumHN1);
w2 = Aloc2DAry(NumHN1,NumOPs);// 2nd layer wts
w22 = Aloc2DAry(NumHN1,NumOPs);
w222 = Aloc2DAry(NumHN1,NumOPs);
// Init wts between -0.5 and +0.5
srand(time(0));
for(i=0;i<NumIPs;i++)
for(j=0;j<NumHN1;j++)
w1[i][j]=w11[i][j]=w111[i][j]= float(rand())/RAND_MAX - 0.5;
for(i=0;i<NumHN1;i++)
for(j=0;j<NumOPs;j++)
w2[i][j]=w22[i][j]=w222[i][j]= float(rand())/RAND_MAX - 0.5;
for(;;){// Main learning loop
MinErr=3.4e38; AveErr=0; MaxErr=-3.4e38; NumErr=0;
for(p=0;p<NumPats;p++){ // for each pattern...
// Cal neural network output
for(i=0;i<NumHN1;i++){ // Cal O/P of hidden layer 1
float in=0;
for(j=0;j<NumIPs;j++)
in+=w1[j][i]*x[p][j];
h1[i]=(float)(1.0/(1.0+exp(double(-in))));// Sigmoid fn
}
for(i=0;i<NumOPs;i++){ // Cal O/P of output layer
float in=0;
for(j=0;j<NumHN1;j++){
in+=w2[j][i]*h1[j];
}
y[i]=(float)(1.0/(1.0+exp(double(-in))));// Sigmoid fn
}
// Cal error for this pattern
PatErr=0.0;
for(i=0;i<NumOPs;i++){
float err=y[i]-d[p][i]; // actual-desired O/P
if(err>0)PatErr+=err; else PatErr-=err;
NumErr += ((y[i]<0.5&&d[p][i]>=0.5)||(y[i]>=0.5&&d[p][i]<0.5));//added for binary classification problem
}
if(PatErr<MinErr)MinErr=PatErr;
if(PatErr>MaxErr)MaxErr=PatErr;
AveErr+=PatErr;
// Learn pattern with back propagation
for(i=0;i<NumOPs;i++){ // Modify layer 2 wts
ad2[i]=(d[p][i]-y[i])*y[i]*(1.0-y[i]);
for(j=0;j<NumHN1;j++){
w2[j][i]+=LrnRate*h1[j]*ad2[i]+
Mtm1*(w2[j][i]-w22[j][i])+
Mtm2*(w22[j][i]-w222[j][i]);
w222[j][i]=w22[j][i];
w22[j][i]=w2[j][i];
}
}
for(i=0;i<NumHN1;i++){ // Modify layer 1 wts
float err=0.0;
for(j=0;j<NumOPs;j++)
err+=ad2[j]*w2[i][j];
ad1[i]=err*h1[i]*(1.0-h1[i]);
for(j=0;j<NumIPs;j++){
w1[j][i]+=LrnRate*x[p][j]*ad1[i]+
Mtm1*(w1[j][i]-w11[j][i])+
Mtm2*(w11[j][i]-w111[j][i]);
w111[j][i]=w11[j][i];
w11[j][i]=w1[j][i];
}
}
}// end for each pattern
ItCnt++;
AveErr/=NumPats;
float PcntErr = NumErr/float(NumPats) * 100.0;
cout.setf(ios::fixed|ios::showpoint);
cout<<setprecision(6)<<setw(6)<<ItCnt<<": "<<setw(12)<<MinErr<<setw(12)<<AveErr<<setw(12)<<MaxErr<<setw(12)<<PcntErr<<endl;
if((AveErr<=ObjErr)||(ItCnt==NumIts)) break;
}// end main learning loop
// Free memory
delete h1; delete y;
delete ad1; delete ad2;
}
void TestNet(float **x,float **d,int NumIPs,int NumOPs,int NumPats ){
cout<<"TestNet() not yet implemented
";
}
float **Aloc2DAry(int m,int n){
//Allocates memory for 2D array
float **Ary2D = new float*[m];
if(Ary2D==NULL){cout<<"No memory!
";exit(1);}
for(int i=0;i<m;i++){
Ary2D[i] = new float[n];
if(Ary2D[i]==NULL){cout<<"No memory!
";exit(1);}
}
return Ary2D;
}
void Free2DAry(float **Ary2D,int n){
//Frees memory in 2D array
for(int i=0;i<n;i++)
delete [] Ary2D[i];
delete [] Ary2D;
}
