Winter WEBD 236 Lab 3

If you use an external source (i.e. a web-page, the required textbook, or an additional book) to help you answer the questions, then be sure to cite that source.  You should probably always be citing a source.

Problem

Having just learned about sessions and simple authentication, we are ready to add these features to our Q&A forum from Lab 2.  In this lab, you will allow people to register for an account.  Users have the following attributes:

•       First name

•       Last name

•       Email address

•       Password (kept in plain text for now)

Furthermore, all questions should now be associated with a registered user.  In other words, you will need to add a column to your questions table that is the primary key of the user.

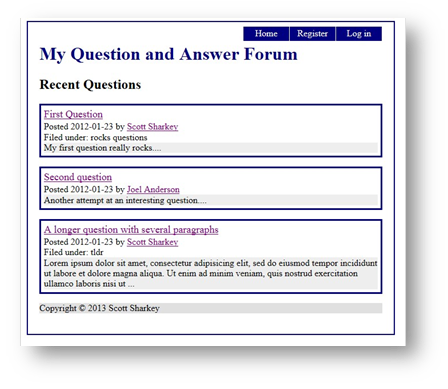

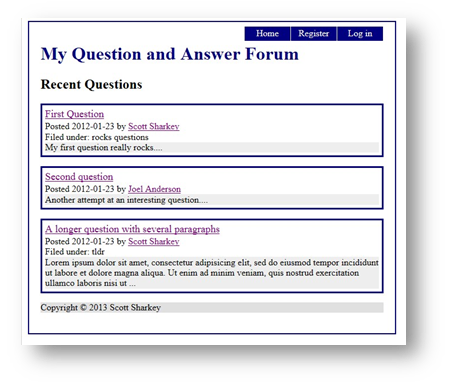

When you visit the forum, you should see something similar to the following:

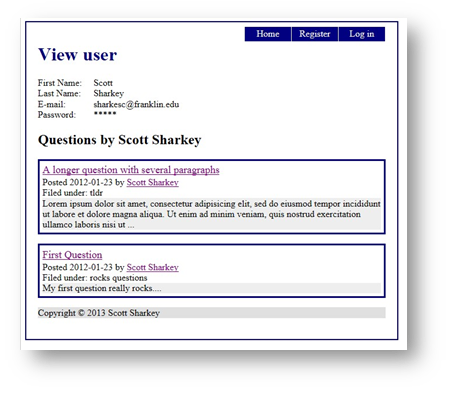

Notice that each question now has a user name (as a hyperlink) that is associated with the question.  If you click on the user who posted the entry, you will see a profile screen similar to the following:

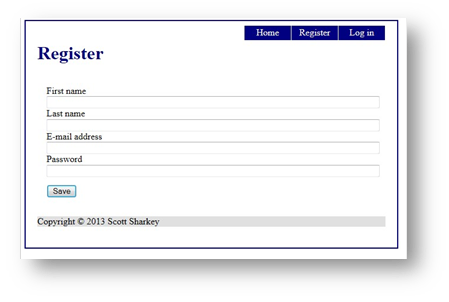

Notice that the user profile screen also lists all questions created by that user.  If the user clicks the “Register” link in the upper right hand corner, then they are presented with the following registration page.

Naturally, all fields are required.  Aside from ensuring non-empty fields, the email address must be unique for all users – using an existing e-mail address should be flagged as an error (see below).

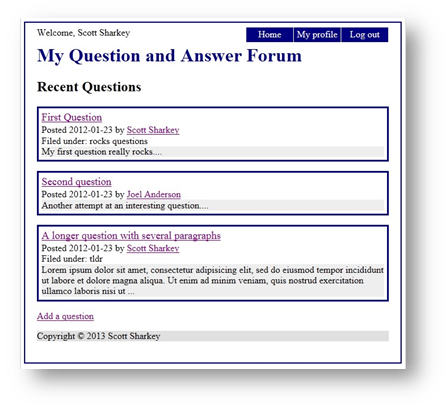

Once the fields are all validated, the user is created and immediately logged in and redirected to the home page for the forum (see below).  Notice that the forum welcomes them by name, and they now have a link at the bottom to add a question.  Also, the “Register” link has become “My Profile” and the

“Login” link has become “Log out.”

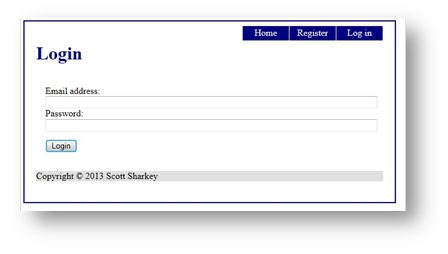

A user who logs out, and wishes to log back in again can click on the “Login” link and be directed to a login page as shown below.

After logging in, the user should be directed back to the main forum screen.

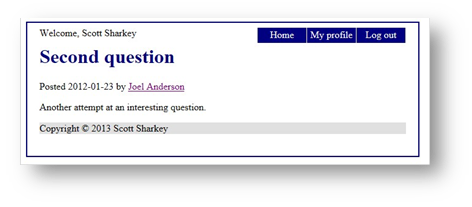

When a user views a question that does not belong to them, they can merely view it (see below).

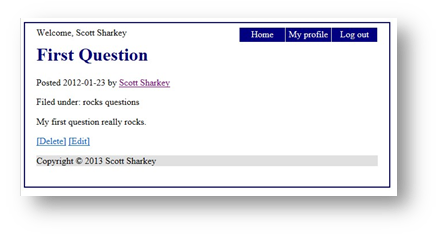

However, if the user is the owner of the question, then the user can also edit and delete the question (see below).

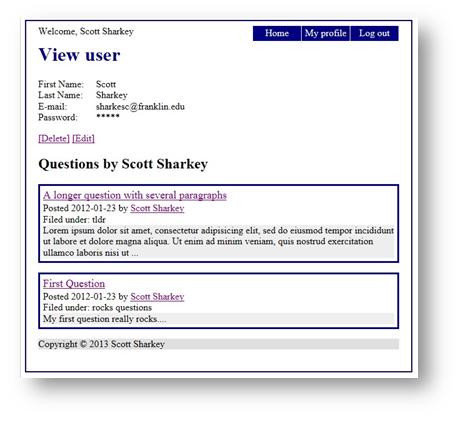

The same is true of the profile information.  If the user selects “My Profile” they are taken to the same screen as anyone would be to view another’s profile.  However, they have the additional options of editing and deleting their own profile.  See below.

When a user decides to delete their profile, you must maintain referential integrity in the database.  Therefore, you must first programmatically delete all forum posts belonging to that user and then remove the user and log them out.   For example, if Reginald Cooper deletes himself, then immediately upon clicking “Delete,” you would see the following main page (without his question).

As with all good software, an effort to URL fish into an area that requires a login should redirect to a login page.  Furthermore, if the user is logged in, but tries to URL fish to, say, delete another user, then the program should not permit that action.

Basic Requirements:

•       Add a login screen

•       Add a user registration screen

•       When a user is logged in, the header should welcome the user and have link to the home page, the user profile, and a log out button.

•       When no user is logged in, the header should merely have a link to the home page, a link to register, and a link to log in.

•       Without logging in, users should be able to view questions and other users’ profiles.

•       When logged in, users should be able to create, edit, and delete their own questions (but not others’ questions), and edit and delete their profile.

•       No duplicate email addresses should be permitted.

•       All sessions should be over HTTPS.

Helpful Hints

•       See the LoginExample file posted on the supplemental web site for how to add basic user login capabilities.

•       You should use SQLite (not MySQL) for this project.

•       Make sure that your project works on any server on any directory.  In other words, you should never hard-code a URL with the name or IP address of your machine.  We won’t be using your machine when we test it.  Also, you should not hard-code a directory name in your application.  It should run as http://localhost/forum/index or as http://localhost/myforum/index or any other directory URL.

•       Use the MVC framework developed in class.  This will help, since the project is getting bigger.

Submission instructions

Create a ZIP file of your entire project contents as it is found under your C:XAMPPhtdocsforum3 directory.  This ZIP file should contain your database, your PHP scripts, style files, etc. Follow proper coding conventions (indentation, commenting, etc.) that you would have learned in previous courses.

Submit the ZIP file to the dropbox for this assignment in the course.

Assignment Description

This is a PHP programming. I am using Aptana, SQ lite. For this lab.

MUST use the MVC template structure.

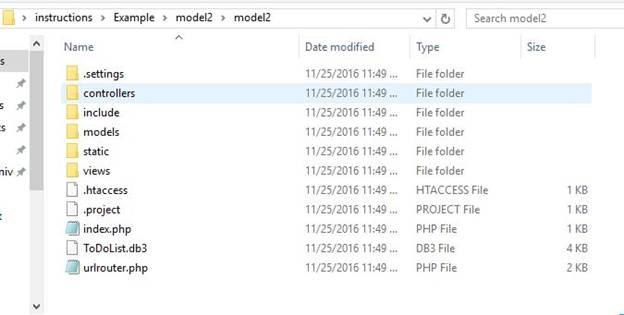

Example how the files should be separate in their own folders. Please use all the folders and name it as you see it. When I open the folders I need it to look like this.

Assignment Description

• Six steps to database design –   Identify the data elements –   Subdivide each element into its smallest useful  components –   Identify the tables and assign columns –   Identify primary and foreign keys (relationships) –   Normalize –   Identify indices



Database Design

• Example:

– Consulting company connects people with the right skills to clients who need those people to work on specific projects

Database Design •   –   Need to know which employees have certain skills (and at what level), and assign them to a project for certain dates. –   A client can have more than one project, but each project has a specific contact person (sponsor) within the client’s organization. 6



8



• Is the database normalized? –   Third normal form:   2NF and every non-key  attribute must depend only on the primary key –   Boyce-Codd normal form: (BCNF) a non   -key  attribute cannot depend on a non-key attribute                                      (avoids transitive dependencies )   –   Higher forms: interesting, but not particularly  useful for this course. 12





14



•      CREATE DATABASE – Needed in a multi- database server (MySQL), but not for SQLite. CREATE DATABASE IF NOT EXISTS Contracting; •      USE – again, for servers w/ many DBs USE  Contracting; •      DROP DATABASE – irreversable DROP DATABASE Contracting; 16



22

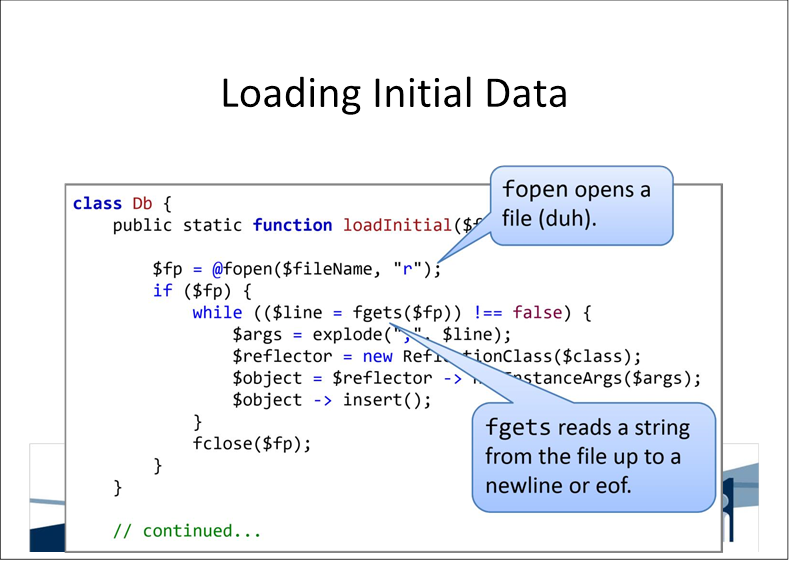

• Why load initial data –   Need the DB to be in an initial state for the  application to work –   Need something to test interactively data.txt file                  Joe,O'Conner,...                                             containing contact                  John,Roberts,...                                         information to load Bill,Kilbourne,... Ruth,Richardson,... 24



34
