MECH 529 – Laboratory 11

** **

** **

** **

*“Optimization of Dynamic Systems”*

* *

**Thomas H. Bradley, PhD.**

(970) 491-3539, ...

* *

**Introduction:**

All last week we have been talking about methods of optimization of dynamic systems. We now get the opportunity to apply that knowledge to our models. Our application will be the power production of photovoltaic panels.

**Learning
Objectives:**

1) Test a number of the computer modeling techniques that we have learned in the ME529 laboratory with the construction of an model of a nonlinear dynamic (thermal) system

2) Introduce penalty functions as a means for imposing constraint on system optimization algorithms

3) Use optimization to define ideal conditions of operation for a dynamic system

** **

**Task 1 – Penalty Functions:**

Many optimization routines (including Nelder Mead simplex) that are used for system design are unconstrained optimization routines. To add constraints on the variables (that are changing during the optimization) requires an augmentation of the cost function. One way to accomplish that is penalty functions.

As an example, let us assume that you would like to conduct an optimization for the problem:

Minimize *f*(*x*)=-2*x, *subject
to *x*<5

The
problem is that Nelder-Mead has no way to incorporate your constraint on the
admissible values of x. You must augment the cost function *f*(*x*)
with a penalty function that communicates violation of the constraint to the
solver by increasing the cost function when the constraint is violated. In
this case, you can use a penalty function of the form:

*p*(*x*) = *r _{p}**(max(0,

*x*-5))

^{2}

The variable *r _{p}*

*r*is a variable that determines the size of the penalty that is applied when the constraint is violated. As

*r*increases, violation of the constraints is more and more penalized. Often you will change

_{p}*r*in subsequent optimization operations to assure that the constraints are not violated. Addition of this penalty function to the cost function results in an augmented cost function of:

_{p}

*f*(*x*)=2*x *+ *r _{p}**(max(0,

*x*-5))

^{2}

To
construct a penalty function is easy for inequality constraints: put the
constraint equation into the form of an equation that is less than zero (*g*(*x*)<0)
and use *r _{p}**max(0,

*g*(

*x*))

^{2}as the penalty function. To construct a penalty function for equality constraints, put the constraint in the form of g(x)=0, and use the penalty function

*r**

_{p}*g*(

*x*)

^{2}. Try to construct a penalty function with the following constraints:

*x*=4

-*x* > 3

*x*_{1} <*x*_{2}+5

One thing to note is that in order for the penalty functions to be effective, they must be of the same order of magnitude as each other and of the same order of magnitude (or greater) as the cost function.

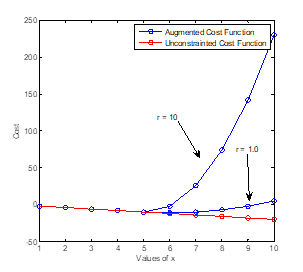

Figure
2. Comparison of augmented and conventional cost function for the

external penalty method example problem, *r*=10

**Task 2 – Example of MATLAB Nelder Mead:**

MATLAB™’s Nelder Mead n-dimensional simplex method is called fminsearch. To do an example problem with fminsearch,

Minimize *f *= -*x*_{1}*x*_{2}

Subject
to *g*_{1} = *x*_{1}+*x*_{2}^{2}-1
< 0

*g*_{2} = -*x*_{1}-*x*_{2 }<0

To solve this problem you will have to make two
m-files. One will be a script file that you use to call fminsearch. The other will be a function that evaluates *f* as a function of *x*_{1} and *x*_{2}. I pass the
vector of *x*_{1} and *x*_{2} to the evaluation
function along with the value of the penalty, *r*. Here is the code for
the script file. I have varied *r* so that the constraints are:

clear

close all

optim_options = optimset('Display','iter');

[x1,x2] = meshgrid(-1:.1:1, -1:.1:2);

index = 0;

for rp = [1:10:31]

close all

index=index+1;

f_const = -x1.*x2 + rp*max(0,x1+x2.^2-1).^2 + rp*max(0,-x1-x2).^2;

f_unconst = -x1.*x2 ;

subplot(1,2,1);

contourf(x1,x2, f_unconst,[-.5 -.4 [0:.5:5]]); title(' Unconstrained Problem'); colorbar

subplot(1,2,2); contourf(x1,x2, f_const,[-.5 -.4 [0:.5:5]]); hold on ; colorbar

plot([-1:.01:1],sqrt(-[-1:.01:1]+1),'k'); plot([-1 1], [1 -1],'k')

title(['Find Optimum Between the 2 Black Lines, Rp = ' num2str(rp)])

[x] = fminsearch(@(x) example_fxn(x,rp),[-.5 -.5],optim_options)

Solution(index,:)=x;

end

Here
is the code for the function. You can see that I have put the penalty
functions in the evaluation of the cost function *f*:

function f = example_fxn(x,rp)

pause(.5)

f = -x(1)*x(2) + rp*max(0,x(1)+x(2)^2-1)^2 + rp*max(0,-x(1)-x(2))^2;

plot(x(1), x(2),'ro-');

Run
the example and watch the operation of the simplex algorithm. You will see it
accelerate towards the optimum when the slope is large. The algorithm then
refines estimations of the optimum as it gets closer and closer. With *rp* = 1, the constraint is not very well enforced and the final value of *x* =
(0.89, 0.67), outside the constraint. With *rp* = 31, the constraint is
well enforced and the final value of *x* = (0.67, 0.58). Note that this
is still just outside of the actual constraint (zoom in to see). As *rp* gets bigger you see the constraints form a “bathtub” in which the optimizer can
operate.

**Task 3 – Thermal Photovoltaic Panel Model:**

** Dynamic Model**:

A photovoltaic (PV) panel generates electricity from the sun, but there are a number of consideration that determine how much value it will generate. Its orientation, its temperature, and the time varying price of electricity; all determine what the value of the panel will be. For this homework, we will compare a couple of options for configuring and orienting a PV system to maximize the economic value of the array.

Consider this solar panel and its specification sheet (click here).

**Problem 1)** Simulate
the thermal behavior of this single solar photovoltaic panel over the first day
(24*60*60 seconds) of the year. Model the solar panel as a thermal capacitance
(using the spec sheet value for *m _{panel}* and a referenced value
for

*c*from glass) and a thermal resistance (due to convection to the ambient air). With your system dynamics model you should be able to calculate the temperature of the panel as a function of time.

_{p}The global goal is to maximize the amount of money that your solar panel can earn. You will have to construct a cost function to sum the amount of money that your solar panel will produce.

My house allows the panels to be mounted to the roof and oriented at A=180 degrees (pointing direct South) and b = 23deg (equal to my roof pitch). Use those values for this initial simulation.

*Please calculate the value that your panel can accrue
over the 24 hours of Jan 1, 2015. Plot a variety of dynamic inputs and states
to cursorily validate your simulation. *

Some important considerations are:

· The ambient air temperature changes over the course of the day, I’ll give you the data for Fort Collins, 2015.

· Wind tunnel tests show that the convection coefficient for a flat panel is a function of wind speed with a correlation relation : , where a = 5.8 and b = 3.95[1]. I’ll give you wind speed data for Fort Collins, 2015, because the panel is roof mounted, allow convection only on the top of the panel.

· The panel output power is a
function of the solar input irradiance (I’ll give you irradiance data for Fort
Collins, 2015), and the panel temperature. The panel power is directly
proportional to flat panel irradiance (*Irradiance*_{panel)},
where 1000W/m^{2} solar irradiance input = 345W electrical output. The
spec sheet also describes includes a temperature coefficient (*Pmpp*) to
derate the power production of the panel for each degree of temperature over
25C.

· Given, solar elevation (same as
solar altitude, a) and solar azimuth (A), you can calculate the
incident radiation (*Irradiance*_{panel}) on a flat panel that has
an orientation of azimuthal rotation (g) and tilt (b). Our assumptions will be that the panel characteristics will be
fixed in time (g,b), and that the solar
coordinates (a,A) will change as a function of the time of day and
of time of the year[2].

*Irradiance*_{panel}[W/m^{2}]=DNI[W/m^{2}]
* cos(*q** _{i}*)

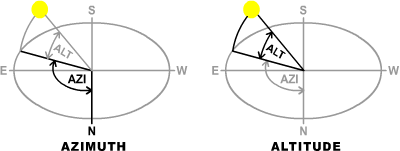

Figure 3 is a diagram showing solar angles. Note that panel azimuth (g) is defined in the same orientation as solar azimuth, and that panel tilt (b) is defined such that a horizontal panel on flat ground has b=0deg, and a vertical panel on a wall has b=90deg.

Figure 3. Solar Angles

· Type >>load
solar_weather_data.mat* *, to load two arrays of data which are specific to
Fort Collins, CO.

The first is “TimeDhiDniTempWindAzEl”, the columns of which are:

1. Time [sec] of the year 2015

2. Direct Horizontal Irradiation (not used)

3. Direct Normal Irradiation [W/m2] – the solar power per unit area that strikes a plane pointed directly at the sun[3]

4. Temperature [C] – the ambient air temperature for 2015

5. Wind Speed [m/s] – the wind speed for 2015

6. Azimuth [degrees] – the solar azimuth (A) for 2015

7. Elevation [degrees] – the solar elevation (a) for 2015[4]

The second is “tou_rate_cents_per_kWh”, the columns of which are:

1. Time [sec] of the year 2015

2. Electricity Price [Cents/kWh electricity] – the time of use cost of electricity [5]

**Problem 2)** Compare the difference in value accrued over the entire year (365days/yr*24hrs/day*3600
sec/hr) between these two scenarios of PV system mounting.

1. Mounting the panel directly to the roof, where only 1 side of the panel is cooled by the convection to the ambient air.

2. Mounting the panel on a rack to the roof, where both sides of the panel is cooled by convection to the ambient air. This can be modeled by considering the area of convection to be 2x the area considered above.

How much money could the racking system cost (per panel) to realize value for the PV system?

**Problem 3)** Assuming that I could mount the PV panel at any
orientation (A, a) what is the optimal orientation that realizes
maximum value from our PV system?[6]
Getting the data in and out of Simulink can be a bit tricky, here is my
augmented cost function:

function cost = augmented_cost_fxn(Az_Beta_inputs)

load solar_weather_data

Az_input = Az_Beta_inputs(1);

Beta_input = Az_Beta_inputs(2);

simOut = sim('InsolationSimulation','SrcWorkspace','current');

Simulink.SimulationOutput;

cost = -simOut.get('dollars'); % make it negative for minimzation

end

And after some initializations, here is my function that calls fminsearch.

optim_options = optimset('Display','iter');

[x] = fminsearch('augmented_cost_fxn',[Az_input_init Beta_input_init], optim_options)

The rule of thumb is that facing direct south and at a tilt equal to the latitude of location is optimal[7]. Explain why the rule of thumb for PV orientation is wrong. Explain why the rooftop PV market in Colorado will be approximately 50X smaller than the market in California[8]. Here is a clue.[9]

**Problem 4) **You can see that the panel can reach over the 85C
maximum temperature if it is not rack mounted. Make the convection only happen
on the top side of the panel, and add a constraint so that the panel never
reaches over 85C. What is the optimal orientation (A, a) that results in the temperature of the panel never going over 85C?
Plot temperature to verify that the constraint is met.

Writeup due in class before 11:59am Friday Dec 2.

**Other stuff to do in preparation for the Lab of 11/28:**

1) Please break into groups of 4 students, exchange emails and cell numbers

2) Designate one student with a well-functioning PC laptop

3) On that computer, install a full version of MATLAB using the instructions below. I have procured for you a full version of MATLAB with every possible toolset and option. This is worth like $25,000 per license and ensures that you have an ideal simulation environment, fully removed from ENS. You are welcome to install this version of MATLAB on your personal computer. Please do not take more than 1 license per group, do not sell or abuse the license; it is intended for coursework only.

To install the license, follow these steps using the computer you intend to use for your coursework.

1. Go to http://www.mathworks.com/support/

2. Click on Download products.

User id: ..., pwd: H2e2going

3. Download the earlier release of MATLAB that is numbered R2015a. It is like 2GB of downloaded information.

4. When prompted, choose *Install using the
Internet*. Select License 959549… Choose *Typical Installation*

4) Download and install the *MotoTune* and *MotoServer* Software by searching for “mototune” at http://www.woodward.com/software.aspx. You will have to register with Woodward’s
website to get access.

5) Download and install a GCC compiler by searching for “GCC PowerPC eabi SPE 4.6.0”.

6) Download and install the MotoHawk Software from

http://www.engr.colostate.edu/~thb/Publications/MotoHawk-Release-2015a_sp0.1432.exe

[1] Applied Thermal Engineering Volume 28, Issues 8-9, June 2008, Pages 801-808

[2] http://www.powerfromthesun.net/Book/chapter04/chapter04.html

[3] NREL, NSRDB, https://maps.nrel.gov/nsrdb-viewer

[5] http://www.denverpost.com/2016/08/15/xcel-energy-pilot-programs-will-charge-extra-for-electricity-used-in-high-demand-periods/

[6] https://www.mathworks.com/matlabcentral/fileexchange/16649-send-text-message-to-cell-phone/content//send_text_message.m

[7] http://www.homepower.com/articles/solar-electricity/design-installation/optimizing-pv-array-orientation-tilt

[8] See Figure 19 of http://www.nrel.gov/docs/fy08osti/42306.pdf

[9] http://www.pge.com/residentialtou/ , the E7 rate is the default residential time of use rate, comparable to the Xcel Energy rate referenced above

## Assignment Description

MECH 529 – Laboratory 11** **

** **

** **

** **

*“Optimization of Dynamic Systems” *

* *

**Thomas H. Bradley, PhD. **

(970) 491-3539, __...__

* *

**Introduction: **

All last week we have been talking about methods of optimization of dynamic systems. We now get the opportunity to apply that knowledge to our models. Our application will be the power production of photovoltaic panels.

**Learning
Objectives: **

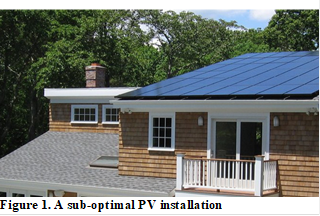

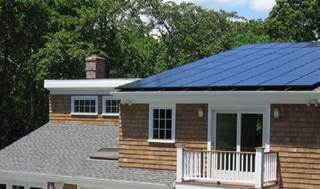

1) Test a number of the computer **Figure 1. A sub-optimal
PV installation**** **modeling techniques that we
have learned in the ME529 laboratory with the construction of an model of a
nonlinear dynamic (thermal) system

2) Introduce penalty functions as a means for imposing constraint on system optimization algorithms

3) Use optimization to define ideal conditions of operation for a dynamic system

** **

**Task 1
– Penalty Functions: **

Many optimization routines (including Nelder Mead simplex) that are used for system design are unconstrained optimization routines. To add constraints on the variables (that are changing during the optimization) requires an augmentation of the cost function. One way to accomplish that is penalty functions.

As an example, let us assume that you would like to conduct an optimization for the problem:

### Minimize *f*(*x*)=-2*x, *subject to *x*<5

The problem is that Nelder-Mead
has no way to incorporate your constraint on the admissible values of x. You
must augment the cost function *f*(*x*) with a penalty function that
communicates violation of the constraint to the solver by increasing the cost
function when the constraint is violated. In this case, you can use a penalty
function of the form:

*p*(*x*) = *r*_{p}*(max(0,*x*-5))^{2}

_{p}

The variable *r _{p}*

*r*is a variable that determines the size of the penalty that is applied when the constraint is violated. As

*r*increases, violation of the constraints is more and more penalized. Often you will change

_{p}*r*in subsequent optimization operations to assure that the constraints are not violated. Addition of this penalty function to the cost function results in an augmented cost function of:

_{p} *f*(*x*)=2*x *+ *r _{p}**(max(0,

*x*-5))

^{2 }

To construct a penalty function
is easy for inequality constraints: put the constraint equation into the form
of an equation that is less than zero (*g*(*x*)<0) and use *r _{p}**max(0,

*g*(

*x*))

^{2}as the penalty function. To construct a penalty function for equality constraints, put the constraint in the form of g(x)=0, and use the penalty function

*r**

_{p}*g*(

*x*)

^{2}.

Try to construct a penalty function with the following constraints:

*x*=4

-*x* > 3 *x*_{1} <*x*_{2}+5

One thing to note is that in order for the penalty functions to be effective, they must be of the same order of magnitude as each other and of the same order of magnitude (or greater) as the cost function.

**Figure 2. Comparison of augmented and conventional
cost function for the external penalty method example problem, r=10 **

**Task
2 – Example of MATLAB Nelder Mead: **

MATLAB™’s Nelder Mead n-dimensional simplex method is called fminsearch. To do an example problem with fminsearch,

Minimize *f *= -*x*_{1}*x*_{2 }

Subject to *g*_{1} = *x*_{1}+*x*_{2}^{2}-1 < 0

*g*_{2} = -*x*_{1}-*x*_{2 }<0

To solve this problem you will have to make
two m-files. One will be a script file that you use to call fminsearch. The other will be a
function that evaluates *f* as a function of *x*_{1} and *x*_{2}.
I pass the vector of *x*_{1} and *x*_{2} to the
evaluation function along with the value of the penalty, *r*. Here is the
code for the script file. I have varied *r* so that the constraints are:

clear close all

optim_options = optimset('Display','iter'); [x1,x2] = meshgrid(-1:.1:1, -1:.1:2); index = 0; for rp = [1:10:31] close all index=index+1;

f_const = -x1.*x2 + rp*max(0,x1+x2.^2-1).^2 + rp*max(0,-x1-x2).^2; f_unconst = -x1.*x2 ; subplot(1,2,1);

contourf(x1,x2, f_unconst,[-.5 -.4 [0:.5:5]]); title(' Unconstrained Problem'); colorbar subplot(1,2,2); contourf(x1,x2, f_const,[-.5 -.4 [0:.5:5]]); hold on ; colorbar plot([-1:.01:1],sqrt(-[-1:.01:1]+1),'k'); plot([-1 1], [1 -1],'k') title(['Find Optimum Between the 2 Black Lines, Rp = ' num2str(rp)]) [x] = fminsearch(@(x) example_fxn(x,rp),[-.5 -.5],optim_options)

Solution(index,:)=x;

end

Here is the code
for the function. You can see that I have put the penalty functions in the
evaluation of the cost function *f*:

function f = example_fxn(x,rp) pause(.5)

f = -x(1)*x(2) + rp*max(0,x(1)+x(2)^2-1)^2 + rp*max(0,-x(1)-x(2))^2; plot(x(1), x(2),'ro-');

Run the example and watch the operation of the simplex
algorithm. You will see it accelerate towards the optimum when the slope is
large. The algorithm then refines estimations of the optimum as it gets closer
and closer. With *rp* = 1, the constraint is not very well enforced and
the final value of *x* = (0.89, 0.67), outside the constraint. With *rp* = 31, the constraint is well enforced and the final value of *x* = (0.67,
0.58). Note that this is still just outside of the actual constraint (zoom in
to see). As *rp* gets bigger you see the constraints form a “bathtub” in
which the optimizer can operate.

**Task 3
– Thermal Photovoltaic Panel Model: **

** Dynamic
Model**:

A photovoltaic (PV) panel generates electricity from the sun, but there are a number of consideration that determine how much value it will generate. Its orientation, its temperature, and the time varying price of electricity; all determine what the value of the panel will be. For this homework, we will compare a couple of options for configuring and orienting a PV system to maximize the economic value of the array.

Consider this solar panel and its specification sheet (click here).

**Problem 1)** Simulate the thermal behavior of this single solar photovoltaic panel over the
first day (24*60*60 seconds) of the year. Model the solar panel as a thermal
capacitance (using the spec sheet value for *m _{panel}* and a
referenced value for

*c*from glass) and a thermal resistance (due to convection to the ambient air). With your system dynamics model you should be able to calculate the temperature of the panel as a function of time.

_{p}The global goal is to maximize the amount of money that your solar panel can earn. You will have to construct a cost function to sum the amount of money that your solar panel will produce.

My house allows the panels to be mounted to the roof and oriented at A=180 degrees (pointing direct South) and β = 23deg (equal to my roof pitch). Use those values for this initial simulation.

*Please calculate the value that your panel can accrue over the 24
hours of Jan 1, *

*2015.
Plot a variety of dynamic inputs and states to cursorily validate your
simulation. *

Some important considerations are:

• The ambient air temperature changes over the course of the day, I’ll give you the data for Fort Collins, 2015.

• Wind tunnel tests show that the convection coefficient for a flat panel is a

𝑊𝑊 function of wind speed with a correlation relation : ℎ [ ] = 𝑎𝑎 + 𝑏𝑏𝑏𝑏,

𝑠𝑠𝑠𝑠𝑠𝑠 𝐾𝐾

where a = 5.8 and b = 3.95^{[1]}. I’ll give you wind
speed data for Fort Collins, 2015, because the panel is roof mounted, allow
convection only on the top of the panel.

• The panel output power is a function of the solar input
irradiance (I’ll give you irradiance data for Fort Collins, 2015), and the
panel temperature. The panel power is directly proportional to flat panel
irradiance (*Irradiance*_{panel)}, where 1000W/m^{[2]} solar
irradiance input = 345W electrical output. The spec sheet also describes
includes a temperature coefficient (*Pmpp*) to derate the power production
of the panel for each degree of temperature over 25C.

• Given, solar elevation (same as solar altitude, α) and solar azimuth
(A), you can calculate the incident radiation (*Irradiance*_{panel})
on a flat panel that has an orientation of azimuthal rotation (γ) and tilt (β). Our assumptions
will be that the panel characteristics will be fixed in time (γ,β), and that the solar
coordinates (α,A)
will change as a function of the time of day and of time of the year^{2}.

*Irradiance*_{panel}[W/m^{2}]=DNI[W/m^{2}]
* cos(θ* _{i}*) cos(θ

*) = sin(α)cos(β) + cos(α)sin(β)cos(γ−*

_{i }*A*)

Figure 3 is a diagram showing solar angles. Note that panel azimuth (γ) is defined in the same orientation as solar azimuth, and that panel tilt (β) is defined such that a horizontal panel on flat ground has β=0deg, and a vertical panel on a wall has β=90deg.

**Figure 3. Solar Angles**** **

• Type >>load
solar_weather_data.mat* *, to load two arrays of data which are
specific to Fort Collins, CO.

The first is “TimeDhiDniTempWindAzEl”, the columns of which are:

1. Time [sec] of the year 2015

2. Direct Horizontal Irradiation (not used)

3. Direct
Normal Irradiation [W/m2] – the solar power per unit area that strikes a plane
pointed directly at the sun^{[3]}

4. Temperature [C] – the ambient air temperature for 2015

5. Wind Speed [m/s] – the wind speed for 2015

6. Azimuth [degrees] – the solar azimuth (A) for 2015

7. Elevation
[degrees] – the solar elevation (α)
for 2015^{[4]} The second is “tou_rate_cents_per_kWh”,
the columns of which are:

1. Time [sec] of the year 2015

2. Electricity Price [Cents/kWh electricity] – the time of use cost
of electricity ^{[5]}

**Problem 2)** Compare the difference in
value accrued over the entire year (365days/yr*24hrs/day*3600 sec/hr) between
these two scenarios of PV system mounting.

1. Mounting the panel directly to the roof, where only 1 side of the panel is cooled by the convection to the ambient air.

2. Mounting the panel on a rack to the roof, where both sides of the panel is cooled by convection to the ambient air. This can be modeled by considering the area of convection to be 2x the area considered above.

How much money could the racking system cost (per panel) to realize value for the PV system?

**Problem 3)** Assuming that I could mount the PV panel at any orientation (A, α) what is the optimal
orientation that realizes maximum value from our PV system?^{6}
Getting the data in and out of Simulink can be a bit tricky, here is my
augmented cost function:

function cost = augmented_cost_fxn(Az_Beta_inputs)

load solar_weather_data Az_input = Az_Beta_inputs(1); Beta_input = Az_Beta_inputs(2);

simOut = sim('InsolationSimulation','SrcWorkspace','current'); Simulink.SimulationOutput;

cost = -simOut.get('dollars'); % make it negative for minimzation end

And after some initializations, here is my function that calls fminsearch.

optim_options = optimset('Display','iter');

[x] = fminsearch('augmented_cost_fxn',[Az_input_init Beta_input_init], optim_options)

The rule of thumb
is that facing direct south and at a tilt equal to the latitude of location is
optimal^{[7]}. Explain why the rule of thumb for PV
orientation is wrong. Explain why the rooftop PV market in Colorado will be
approximately 50X smaller than the market in California^{[8]}. Here
is a clue.^{[9]}

**Problem 4) **You
can see that the panel can reach over the 85C maximum temperature if it is not
rack mounted. Make the convection only happen on the top side of the panel,
and add a constraint so that the panel never reaches over 85C. What is the
optimal orientation (A, α) that results in the temperature of the panel never going over 85C?
Plot temperature to verify that the constraint is met. ** **

Writeup due in class before 11:59am Friday Dec 2.

**Other stuff to do in preparation
for the Lab of 11/28: **

1) Please break into groups of 4 students, exchange emails and cell numbers

2) Designate one student with a well-functioning PC laptop

3) On that computer, install a full version of MATLAB using the instructions below. I have procured for you a full version of MATLAB with every possible toolset and option. This is worth like $25,000 per license and ensures that you have an ideal simulation environment, fully removed from ENS. You are welcome to install this version of MATLAB on your personal computer. Please do not take more than 1 license per group, do not sell or abuse the license; it is intended for coursework only.

To install the license, follow these steps using the computer you intend to use for your coursework.

1. Go to http://www.mathworks.com/support/

2. Click on Download products.

User id: __...__,
pwd: H2e2going

3. Download the earlier release of MATLAB that is numbered R2015a. It is like 2GB of downloaded information.

4. When prompted, choose *Install using
the Internet*. Select License 959549… Choose *Typical Installation*

4) Download and install the *MotoTune* and *MotoServer* Software by searching for “mototune” at http://www.woodward.com/software.aspx. You will have to register with
Woodward’s website to get access.

5) Download and install a GCC compiler by searching for “GCC PowerPC eabi SPE

4.6.0”.

6) Download and install the MotoHawk Software from

http://www.engr.colostate.edu/~thb/Publications/MotoHawk-Release-

__[1]____ Applied Thermal Engineering Volume 28, Issues 8-9, June
2008, Pages 801-808 __

__[2]____ http://www.powerfromthesun.net/Book/chapter04/chapter04.html __

__[3]____ NREL, NSRDB____, __https://maps.nrel.gov/nsrdb-viewer__ ____ __

__[5]__ http://www.denverpost.com/2016/08/15/xcel-energy-pilot-programs-will-charge-extra-for-electricityused-in-high-demand-periods/__ __

__[6]__ https://www.mathworks.com/matlabcentral/fileexchange/16649-send-text-message-to-cellphone/content//send_text_message.m__ ____ __

__[7]__ http://www.homepower.com/articles/solar-electricity/design-installation/optimizing-pv-arrayorientation-tilt__ __

__[8]____ See Figure 19 of __http://www.nrel.gov/docs/fy08osti/42306.pdf__ ____ __

__[9]__ http://www.pge.com/residentialtou/__ ,____ the E7 rate is the default residential time of use rate, comparable to
the Xcel Energy rate referenced above __
