Markov games as a framework for multiagent reinforcement learning
Michael L. Littman
Brown University / Bellcore
Department of Computer Science
Brown University
Providence, RI 029121910 ...
Abstract
IntheMarkovdecisionprocess(MDP)formalization of reinforcement learning, a single adaptive agent interacts with an environment defined by a probabilistic transition function. In this solipsistic view, secondary agents can only be part of the environment and are therefore fixed in their behavior. The framework of Markov games allows us to widen this view to include multiple adaptive agents with interacting or competing goals. This paper considers a step in this direction in which exactly two agents with diametrically opposed goals share an environment. It describes a Qlearninglike algorithm for finding optimal policiesanddemonstrates itsapplicationtoa simple twoplayer game in which the optimal policy is probabilistic.
1 INTRODUCTION
Noagentlivesinavacuum; itmustinteractwithotheragents to achieve its goals. Reinforcement learning is a promising technique for creating agents that coexist [Tan, 1993, Yanco and Stein, 1993], but the mathematical framework that justifies it is inappropriate for multiagent environments. The theory of Markov Decision Processes (MDP’s) [Barto et al., 1989, Howard, 1960], which underlies much of the recent work on reinforcement learning, assumes that the agent’s environment is stationary and as such contains no other adaptive agents.
The theory of games [von Neumann and Morgenstern,
1947]is explicitlydesignedforreasoningabout multiagent systems. Markov games (see e.g., [Van Der Wal, 1981]) is an extension of game theory to MDPlike environments. This paper considers the consequences of usingthe Markov game framework in place of MDP’s in reinforcement learning. Only the specific case of twoplayer zerosum games is addressed, but even in this restricted version there are insights that can be applied to open questions in the field of reinforcement learning.
2 DEFINITIONS
An MDP [Howard, 1960] is defined by a set of states, , and actions, . A transition function, : PD , defines the effects of the various actions on the state of the environment. (PD represents the set of discreteprobabilitydistributionsovertheset .) Thereward function, : , specifies the agent’s task.
In broad terms, the agent’s objective is to find a policy mapping its interaction history to a current choice of action so as to maximize the expected sum of discounted reward,
0 ,where istherewardreceived steps into the future. A discount factor, 0 1 controls how much effect future rewards have on the optimal decisions, with small values of emphasizing nearterm gain and larger values giving significant weight to later rewards.
In its general form, a Markov game, sometimes called a stochastic game [Owen, 1982], is defined by a set of states, , and a collection of action sets, _{1 }, one for each agent in the environment. State transitions are controlled by the current state and one action from each agent: :
1 PD . Each agent also has an associated reward function, : _{1 }, for agent , and attempts to maximize its expected sum of discountedrewards, _{0 }, where isthe reward received steps into the future by agent .
In this paper, we consider a wellstudied specialization in whichthere are onlytwoagents and they have diametrically opposed goals. This allows us to use a single reward function that one agent tries to maximize and the other, called the opponent, tries to minimize. In this paper, we use to denote the agent’s action set, to denote the opponent’s action set, and to denote the immediate reward to the agent for taking action in state when its opponent takes action .
Adopting this specialization, which we call a twoplayer zerosum Markov game, simplifies the mathematics but makes it impossible to consider important phenomena such as cooperation. However, it is a first step and can be considered a strict generalization of both MDP’s (when 1) and matrix games (when 1).
As in MDP’s, the discount factor, , can be thought of as the probability that the game will be allowed to continue after the current move. It is possible to define a notion of undiscounted rewards [Schwartz, 1993], but not all Markov games have optimal strategies in the undiscounted case [Owen, 1982]. This is because, in many games, it is best to postpone risky actions indefinitely. For current purposes, thediscountfactorhas thedesirableeffect ofgoading the players into trying to win sooner rather than later.
3 OPTIMAL POLICIES
The previous section defined the agent’s objective as maximizing the expected sum of discounted reward. There are subtleties in applying this definition to Markov games, however. First, we consider the parallel scenario in MDP’s.
In an MDP, an optimal policy is one that maximizes the expected sum of discounted reward and is , meaning that there is no state from which any other policy can achieve a better expected sum of discounted reward. Every MDP has at least one optimal policy and of the optimal policies for a given MDP, at least one is stationary and deterministic. This means that, for any MDP, there is a policy : that is optimal. The policy is called stationary since it does not change as a function of time and it is called deterministicsince the same action is always chosen whenever the agent is in state , for all .
For many Markov games, there is no policy that is undominated because performance depends criticallyon the choice of opponent. In the game theory literature, the resolution to this dilemma is to eliminate the choice and evaluate each policy with respect to the opponent that makes it look the worst. This performance measure prefers conservative strategies that can force any opponent to a draw to more daring ones that accrue a great deal of reward against some opponentsandlosea great deal toothers. Thisistheessence of minimax: Behave so as to maximize your reward in the worst case.
Given this definition of optimality, Markov games have several important properties. Like MDP’s, every Markov game has a nonempty set of optimal policies, at least one of which is stationary. Unlike MDP’s, there need not be a deterministicoptimal policy. Instead, theoptimal stationary policyissometimesprobabilistic,mappingstates todiscrete probability distributions over actions, : PD . A classic example is “rock, paper, scissors” in which any deterministic policy can be consistently defeated.
The idea thatoptimal policiesare sometimes stochastic may seem strange to readers familiar with MDP’s or games with alternating turns like backgammon or tictactoe, since in these frameworks there is always a deterministicpolicy that does no worse than the best probabilisticone. The need for probabilistic action choice stems from the agent’s uncertainty of its opponent’s current move and its requirement to avoid being “second guessed.”
0  1  1
1  0  1
1  1  0
Agent rock paper scissors rock
Opponent paper scissors
Table 1: The matrix game for “rock, paper, scissors.”
 paper  scissors
 (vs. rock)
rock
 scissors
 (vs. paper)
rock  paper

 (vs. scissors)
rock  paper  scissors  1

Table2: Linear constraintsonthesolutiontoamatrixgame.
4 FINDING OPTIMAL POLICIES
This section reviews methods for finding optimal policies formatrixgames, MDP’s, and Markovgames. It uses a uniform notation that is intended to emphasize the similarities between the three frameworks. To avoid confusion, functionnames that appear more thanonce appear withdifferent numbers of arguments each time.
4.1 MATRIX GAMES
At thecoreofthetheoryofgamesisthematrixgamedefined by a matrix, , of instantaneous rewards. Component is the reward to the agent for choosing action when its opponent chooses action . The agent strives to maximize its expected reward while the opponent tries to minimize it. Table 1 gives the matrix game corresponding to “rock, paper, scissors.”
The agent’s policy is a probabilitydistributionover actions,
PD . For “rock, paper, scissors,” is made up of
3 components: rock, paper, and scissors. According to the notion of optimality discussed earlier, the optimal agent’s minimum expected reward should be as large as possible. How can we find a policy that achieves this? Imagine that we would be satisfied with a policy that is guaranteed an expected score of no matter which action the opponent chooses. The inequalities in Table 2, with 0, constrain the components of to represent exactly those policies— any solution to the inequalities would suffice.
For to be optimal, we must identify the largest for which there is some value of that makes the constraints hold. Linear programming (see, e.g., [Strang, 1980]) is a general technique for solving problems of this kind. In this example, linear programming finds a value of 0 for and (1/3, 1/3, 1/3) for . We can abbreviate this linear program as:
max min
PD
where expresses the expected reward to the agent for using policy against the opponent’s action .
4.2 MDP’s
There is a host of methods for solving MDP’s. This section describes a general method known as value iteration [Bertsekas, 1987].
The value of a state, , is the total expected discounted reward attained by the optimal policy starting from state
. States for which is large are “good” in that a smart agent can collect a great deal of reward starting from those states. The quality of a stateaction pair, is the total expected discounted reward attained by the nonstationary policy that takes action from state and then follows the optimal policy from then on. These functions satisfy the followingrecursive relationshipfor all and :
(1)
max (2)
This says that the quality of a stateaction pair is the immediate reward plus the discounted value of all succeeding states weighted by their likelihood. The value of a state is the quality of the best action for that state. It follows that knowing is enough to specify an optimal policy since in each state, we can choose the action with the highest
value.
The method of value iteration starts with estimates for and and generates new estimates by treating the equal signs in Equations 1–2 as assignment operators. It can be shown that the estimated values for and converge to their true values [Bertsekas, 1987].
4.3 MARKOV GAMES
Given , an agent can maximize its reward using the “greedy” strategy of always choosing the action with the highest value. This strategy is greedy because it treats as a surrogate for immediate reward and then acts to maximize its immediate gain. It is optimal because the function is an accurate summary of future rewards.
A similar observation can be used for Markov games once we redefine to be the expected reward for the optimal policy starting from state , and as the expected reward for taking action when the opponent chooses
from state and continuing optimally thereafter. We can then treat the values as immediate payoffs in an unrelated sequence of matrix games (one for each state, ), each of which can be solved optimallyusing the techniques of Section 4.1.
Thus, the value of a state in a Markov game is
max min
PD and the quality of action against action in state is The resultingrecursive equations lookmuch like Equations 1–2 and indeed the analogous value iteration algorithm can be shown to converge to the correct values [Owen, 1982]. It is worth noting that in games with alternating turns, the valuefunctionneednotbecomputedbylinearprogramming since there is an optimal deterministic policy. In this case we can write max min .
5 LEARNING OPTIMAL POLICIES
Traditionally,solvinganMDPusingvalueiterationinvolves applying Equations 1–2 simultaneously over all . Watkins [Watkins, 1989] proposed an alternative approach that involves performing the updates asynchronously without the use of the transition function, .
In this Qlearning formulation, an update is performed by an agent whenever it receives a reward of when making a transition from to after taking action . The update is : which takes the place of
Equation 1. The probability with which this happens is precisely which is why it is possible for an agent to carry out the appropriate update without explicitly using . This learning rule converges to the correct values for and , assuming that every action is tried in every state infinitely often and that new estimates are blended with previous ones using a slow enough exponentially weighted average [Watkins and Dayan, 1992].
It is straightforward, though seemingly novel, to apply the same technique to solving Markov games. A completely specified version of the algorithm is given in Figure 1. The variables in the figure warrant explanation since some are given to the algorithmas part of the environment, others are internal to the algorithm and still others are parameters of the algorithm itself.
Variables from the environment are: the state set, S; the action set, A; the opponent’s action set, O; and the discount factor, gamma. The variables internal to the learner are: a learning rate, alpha, which is initializedto 1.0 and decays over time; the agent’s estimate of the function, Q; the agent’s estimate of the function, V; and the agent’s current policy for state , pi[s,.]. The remaining variables are parameters of the algorithm: explor controls how often the agent will deviate from its current policy to ensure that the state space is adequately explored, and decay controls the rate at which the learning rate decays.
This algorithm is called minimaxQ since it is essentially identical to the standard Qlearning algorithm with a minimax replacing the max.
6 EXPERIMENTS
This section demonstrates the minimaxQ learning algorithm using a simple twoplayer zerosum Markov game modeled after the game of soccer.
Initialize:
For all s in S, a in A, and o in O, Let Q[s,a,o] := 1 For all s in S, Let V[s] := 1 For all s in S, a in A, Let pi[s,a] := 1/A Let alpha := 1.0
Choose an action:
With probabilityexplor, return an action uniformly at random. Otherwise, if current state is s, Return action a with probabilitypi[s,a].
Learn:
After receiving reward rew for moving from state s to s’ via action a and opponent’s action o, Let Q[s,a,o] := (1alpha) * Q[s,a,o] + alpha * (rew + gamma * V[s’]) Use linear programming to find pi[s,.] such that: pi[s,.] := argmax pi’[s,.], min o’, sum a’, pi[s,a’] * Q[s,a’,o’] Let V[s] := min o’, sum a’, pi[s,a’] * Q[s,a’,o’] Let alpha := alpha * decay
Figure 1: The minimaxQ algorithm.

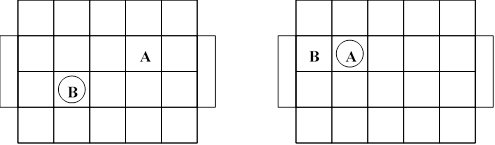

Figure 2: An initial board (left) and a situation requiring a probabilistic choice for A (right).
6.1 SOCCER
The game is played on a 4x5 grid as depicted in Figure 2. The two players, A and B, occupy distinct squares of the grid and can choose one of 5 actions on each turn: N, S, E, W, and stand. Once bothplayershave selected theiractions, the two moves are executed in random order.
The circle in the figures represents the “ball.” When the player with the ball steps into the appropriate goal (left for A, right for B), that player scores a point and the board is reset to the configuration shown in the left half of the figure. Possession of the ball goes toone or the otherplayer at random.
When a player executes an action that would take it to the square occupied by the other player, possession of the ball goes to the stationary player and the move does not take place. A good defensive maneuver, then, is to stand where the other player wants to go. Goals are worth one point and the discount factor is set to 0.9, which makes scoring sooner somewhat better than scoring later.
For an agent on the offensive to do better than breaking even against an unknown defender, the agent must use a probabilistic policy. For instance, in the example situation shown inthe right half of Figure2, any deterministicchoice forAcanbeblockedindefinitelybyacleveropponent. Only by choosing randomly between stand and S can the agent guarantee an opening and therefore an opportunityto score.
6.2 TRAINING AND TESTING
Four different policies were learned, two using the minimaxQ algorithm and two using Qlearning. For each learning algorithm, one learner was trained against a random opponent and the other against another learner of identical design. The resulting policies were named MR, MM, QR, and QQ for minimaxQ trained against random, minimaxQ trained against minimaxQ, Q trained against random, and Q trained against Q.
The minimaxQ algorithm (MR, MM) was as described in
Figure 1 with 0 2 and 10^{log0 01 10}^{6}
0 9999954 and learning took place for one million steps. (The value of decay was chosen so that the learning rate reached 0.01 at the end of the run.) The Qlearning algorithm (QR, QQ) was identical except a “max” operator was used in place of the minimax and the table did not keep information about the opponent’s action. Parameters were set identically to the minimaxQ case.
ForMRandQR,theopponentfortrainingwasafixedpolicy that chose actions uniformly at random. For MM and QQ, the opponent was another learner identical to the first but with separate and tables.
The resulting policies were evaluated in three ways. First, each policy was run headtohead with a random policy for one hundred thousand steps. To emulate the discount factor, every step had a 0.1 probability of being declared a draw. Wins and losses against the random opponent were tabulated.
The second test was a headtohead competition with a handbuilt policy. This policy was deterministic and had simple rules for scoring and blocking. In 100,000 steps, it completed 5600 games against the random opponent and won 99.5% of them.
The third test used Qlearning to train a “challenger” opponent for each of MR, MM, QR and QQ. The training procedure for the challengers followed that of QR where the “champion” policy was held fixed while the challenger was trained against it. The resulting policies were then evaluated against their respective champions. This test was repeated three times to ensure stability with only the first reported here. All evaluations were repeated three times and averaged.
6.3 RESULTS
Table 3 summarizes the results. The columns marked “games” list the number of completed games in 100,000 steps and the columns marked “% won” list the percentage won by the associated policy. Percentages close to 50 indicate that the contest was nearly a draw.
All the policies did quite well when tested against the random opponent. The QR policy’s performance was quite remarkable, however, since it completed more games than the otherpolicies and wonnearly all of them. This might be expected since QR was trained specifically to beat this opponent whereas MR, thoughtrainedin competitionwiththe random policy, chooses actions with an idealized opponent in mind.
Against the handbuilt policy, MM and MR did well, roughly breaking even. The MM policy did marginally better. In the limit, this should not be the case since an agent trained by the minimaxQ algorithm should be insensitive to the opponent against which it was trained and always behave so as to maximize its score in the worst case. The fact that there was a difference suggests that the algorithm had not converged on the optimal policy yet. Prior to convergence, the opponent can make a big difference to the behavior of a minimaxQ agent since playing against a strong opponent means the training will take place in important parts of the state space.
The performance of the QQ and QR policies against the handbuilt policy was strikingly different. This points out an important consequence of not usinga minimax criterion. A close look at the two policies indicated that QQ, by luck, implemented a defense that was perfect against the handbuilt policy. The QR policy, on the other hand, happened to converge on a strategy that was not appropriate. Against a slightly different opponent, the tables would have been turned.
vs. random vs. handbuilt vs. MRchallenger vs. MMchallenger vs. QRchallenger vs. QQchallenger Table 3: Results for policies trained by minimaxQ (MR and MM) and Qlearning (QR and QQ).
The fact that the QQ policy did so well against the random and handbuilt opponents, especially compared to the minimax policies, was somewhat surprising. Simultaneously training two adaptive agents using Qlearning is not mathematically justified and in practice is prone to “locking up,” that is, reaching a mutual local maximum in which both agents stop learning prematurely (see, e.g., [Boyan, 1992]). In spite of this, some researchers have reported amazing success with this approach [Tesauro, 1992, Boyan, 1992] and it seemed to have been successful in this instance as well.
The third experiment was intended to measure the worst case performance of each of the policies. The learned policies were held fixed while a challenger was trained to beat them. This is precisely the scenario that the minimax policies were designed for because, in a fair game such as this, it should break even against even the strongest challenger. The MR policy did not quite achieve this level of performance, indicating that one million steps against a random opponent was insufficient for convergence to the optimal strategy. The MM policy did slightly better, winning against its challenger more often than did MR. It was beatable but only barely so.
The algorithms trained by Qlearning did significantly worse and were incapable of scoring at all against their challengers. This was due in great part to the fact that Qlearning is designed to find deterministic policies and every deterministic offense in this game has a perfect defense, much like rock, paper, scissors. Correctly extending Qlearning to find optimal probabilistic policies is exactly what minimaxQ was designed for.
7 DISCUSSION
This paper explores the Markov game formalism as a mathematical framework for reasoning about multiagent environments. Inparticular, thepaperdescribes a reinforcement learning approach to solvingtwoplayerzerosum games in which the “max” operator in the update step of a standard Qlearning algorithm is replaced by a “minimax” operator that can be evaluated by solving a linear program.
The use of linear programming in the innermost loop of a learning algorithmis somewhat problematic since the computational complexity of each step is large and typically many steps will be needed before the system reaches convergence. It is possible that approximate solutions to the linear programs would suffice. Iterative methods are also quite promising since the relevant linear programs change slowly over time.
Formost applicationsofreinforcement learningtozerosum games, this is not an impediment. Games such as checkers [Samuel, 1959], tictactoe [Boyan, 1992], backgammon [Tesauro, 1992], and Go [Schraudolph et al., 1994] consist of a series of alternating moves and in such games the minimax operator can be implemented extremely efficiently.
The strength of the minimax criterion is that it allows the agent to converge to a fixed strategy that is guaranteed to be “safe” in that it does as well as possible against the worst possible opponent. It can be argued that this is unnecessary if the agent is allowed to adapt continually to its opponent. This is certainly true to some extent but any such agent will in principle be vulnerable to a devious form of trickery in which the opponent leads the agent to learn a poor policy and then exploits it. Identifying an opponent of this type for the Qlearning agent described in this paper would be an interesting topic for future research.
The use of the minimax criterion and probabilistic policies is closely connected to other current research. First, a minimaxcriterioncan be used insingleagent environments to produce more riskaverse behavior [Heger, 1994]. Here, the random transitions of the environment play the role of the opponent. Secondly, probabilistic policies have been used in the context of acting optimally in environments where the agent’s perception is incomplete [Singh et al., 1994]. In these environments, random actions are used to combat the agent’s uncertainty as to the true state of its environment much as random actions in games help deal with the agent’s uncertainty of the opponent’s move.
Although twoplayer Markov games are a fairly restricted class of multiagent environments, they are of independent interest and include Markov decision processes as a special case. Applying insights from the theory of cooperative and multiplayer games could also prove fruitful although finding useful connections may be challenging.
Acknowledgments
Thanks to David Ackley, Justin Boyan, Tony Cassandra, and Leslie Kaelbling for ideas and suggestions.
References
[Barto et al., 1989] Barto, A. G.; Sutton, R. S.; and Watkins, C. J. C. H. 1989. Learning and sequential decision making. Technical Report 8995, Department of Computer and Information Science, University of Massachusetts, Amherst, Massachusetts. Also published in Learning and Computational Neuroscience: Foundationsof Adaptive Networks, Michael Gabriel and John Moore, editors. The MIT Press, Cambridge, Massachusetts, 1991.
[Bertsekas, 1987] Bertsekas, D. P. 1987. Dynamic Programming: Deterministic and Stochastic Models.
PrenticeHall.
[Boyan, 1992] Boyan, Justin A. 1992. Modularneural networks for learning contextdependent game strategies. Master’s thesis, Department of Engineering and Computer Laboratory, University of Cambridge, Cambridge, England.
[Heger, 1994] Heger, Matthias1994. Considerationof risk inreinforcementlearning. InProceedingsoftheMachine Learning Conference. To appear.
[Howard, 1960] Howard, Ronald A. 1960. Dynamic Programming andMarkovProcesses. The MIT Press, Cambridge, Massachusetts.
[Owen, 1982] Owen, Guillermo1982. GameTheory: Second edition. Academic Press, Orlando, Florida.
[Samuel, 1959] Samuel, A. L. 1959. Some studies in machine learning using the game of checkers. IBM Journal of Research and Development 3:211–229. Reprinted in E. A. Feigenbaum and J. Feldman, editors, Computers and Thought, McGrawHill, New York 1963.
[Schraudolph et al., 1994] Schraudolph, Nicol N.; Dayan, Peter; and Sejnowski, Terrence J. 1994. Using the td(lambda) algorithm to learn an evaluation function for the game of go. In Advances in Neural InformationProcessing Systems 6, San Mateo, CA. Morgan Kaufman. To appear.
[Schwartz, 1993] Schwartz, Anton 1993. A reinforcement learning method for maximizing undiscounted rewards. In Proceedings of the Tenth International Conference on Machine Learning, Amherst, Massachusetts. Morgan Kaufmann. 298–305.
[Singh et al., 1994] Singh, Satinder Pal; Jaakkola, Tommi; and Jordan, Michael I. 1994. Modelfree reinforcement learning for nonmarkovian decision problems. In Proceedings of the Machine Learning Conference. To appear.
[Strang, 1980] Strang, Gilbert 1980. Linear Algebra and its applications: second edition. Academic Press, Orlando, Florida.
[Tan, 1993] Tan, M. 1993. Multiagent reinforcement learning: independent vs. cooperative agents. In Proceedings of the Tenth International Conference on Machine Learning, Amherst, Massachusetts. Morgan Kaufmann.
[Tesauro, 1992] Tesauro, G. J. 1992. Practical issues in temporal difference. In Moody, J. E.; Lippman, D. S.; and Hanson, S. J., editors 1992, Advances in Neural Information Processing Systems 4, San Mateo, CA. Morgan Kaufman. 259–266.
[Van Der Wal, 1981] Van Der Wal, J. 1981. Stochastic dynamic programming. In Mathematical Centre Tracts 139. Morgan Kaufmann, Amsterdam.
[von Neumann and Morgenstern, 1947] von Neumann, J. and Morgenstern, O. 1947. Theory of Games and Economic Behavior. Princeton University Press, Princeton, New Jersey.
[Watkins and Dayan, 1992] Watkins, C. J. C. H. and Dayan, P. 1992. Qlearning. Machine Learning
8(3):279–292.
[Watkins, 1989] Watkins, C. J.C.H. 1989. Learning with Delayed Rewards. Ph.D. Dissertation, Cambridge University.
[Yanco and Stein, 1993] Yanco, HollyandStein, LynnAndrea 1993. An adaptive communication protocol for cooperating mobile robots. In Meyer, JeanArcady; Roitblat, H. L.; and Wilson, Stewart W., editors 1993, From Animals toAnimats: Proceedings of the Second International ConferenceontheSimultionofAdaptiveBehavior. MIT Press/Bradford Books. 478–485.
