Short Assignment Requirements

Follow the instructions slides and finish the report with all needed graphs on it.

Assignment Description

Linear Kinetics in Excel

Linear Kinetics

—   For the data set “GRF of 2 Jumpers” assume:

—   Body mass is 85 kg

—   Body starts with an initial velocity of zero

—   Body starts in a squat and leaves the ground when the COM rises 0.31m from the starting position

—   Determine:

—   Takeoff velocity (when leaving the ground)

—   Peak force for GRF and effective force (∑Fy)

—   Average force for GRF and effective force (∑Fy)

—   Jump height

—   Graph (put both jumpers on one graph, be sure to label!):

—   GRF vs. time

—   Position vs. time

—   Velocity vs. time

—   Acceleration vs. time

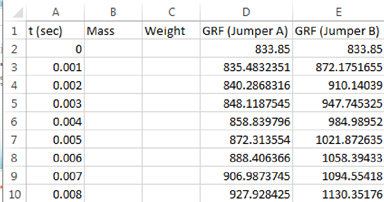

Set Up the Data

—  Download the file ‘GRF of 2 Jumpers’ from Moodle

—  Open with Excel

—  Insert a Column between Columns A and B

—  Repeat to insert a second column

—  Label Column B ‘Mass’

—  Label Column C ‘Weight’

—  Column D should be ‘GRF Jumper A’

—  Column E should be ‘GRF Jumper B’

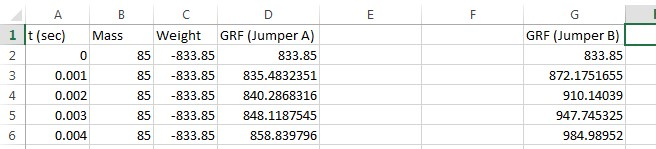

Set Up the Data

—  You were given body mass for both jumpers=85 kg

—  Type this into column C and drag down

—  Calculate body weight and fill column D with this number

Set Up the Data

—  Add two columns between columns D and E

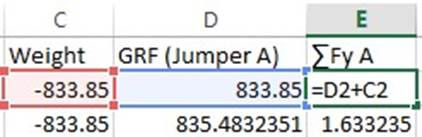

Determine acceleration from GRF data

—Σ Fy= may —Σ Fy=GRFy+Fg

—ay=GRFmy+Fg

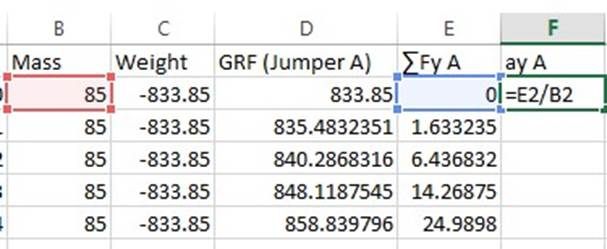

Determine acceleration from GRF data

—Σ Fy= may —Σ Fy=GRFy+Fg

—ay=GRFmy+Fg

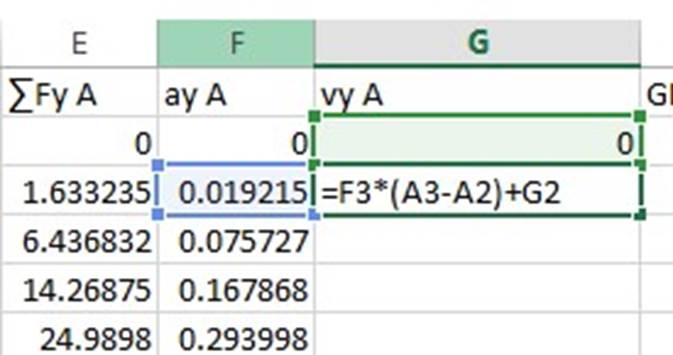

Determine Velocity from

Acceleration

—  𝑣𝑓 =𝑎𝑡𝑓 −𝑡𝑖 +𝑣𝑖

—  Add another blank column after your acceleration data

Determine Velocity from

Acceleration

—  𝑣𝑓 =𝑎𝑡𝑓 −𝑡𝑖 +𝑣𝑖

—  Add another blank column after your acceleration data

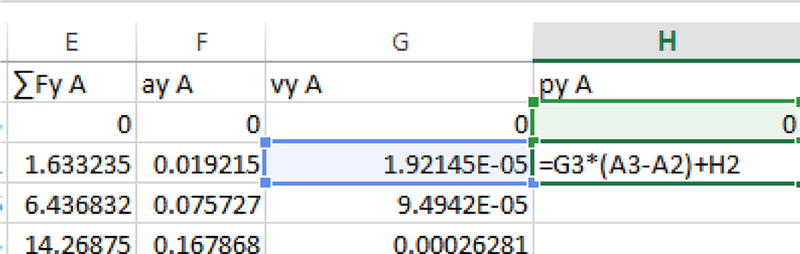

Determine Position from Velocity

—  𝑝𝑓 = 𝑣𝑡𝑓 −𝑡𝑖 +𝑝𝑖

—  Add another blank column after your velocity data

Determine Position from Velocity

—


𝑝𝑓 = 𝑣𝑡𝑓 −𝑡𝑖 +𝑝𝑖

—  Add another blank column after your velocity data

Determine

—  Takeoff velocity (when leaving the ground)

—  Body starts in a squat and leaves the ground when the COM rises 0.31m from the starting position

—  Peak force for GRF and effective force (∑Fy)

—  Average force for GRF and effective force (∑Fy)

—  Jump Height

—  vi=0

—  vf2=vi2+2a∆p

v2

—∆p=

19.62

Determine

—  Takeoff velocity (when leaving the ground)

—  Body starts in a squat and leaves the ground when the COM rises 0.31m from the starting position

—  2.75 m/s

—  Peak force for GRF and effective force (∑Fy)

—  Peak GRF= 3214.57

—  Average force for GRF and effective force (∑Fy)

—  Average GRF= 2002.60

—  Jump Height

—  vi=0

—  vf2=vi2+2a∆p

v2

—∆p=

19.62

Linear Kinetics

—  Determine:

—  Takeoff velocity (when leaving the ground)

—  Peak force for GRF and effective force (∑Fy)

—  Average force for GRF and effective force (∑Fy)

—  Jump height

—  Graph (put both jumpers on one graph, be sure to label!):

—  GRF vs. time

—  Position vs. time

—  Velocity vs. time

—  Acceleration vs. time


Assignment Description

KIN445 Linear Kinetics in Excel                                                       Name:______________________________







Complete the table with the data from the two jumpers:





Jumper A

Jumper B

Takeoff Velocity





Peak GRF





Average GRF





Peak Effective Force





Average Effective Force





Jump Height







Paste your graphs:

Make sure that each graph has a title, axis labels with units, and a legend!

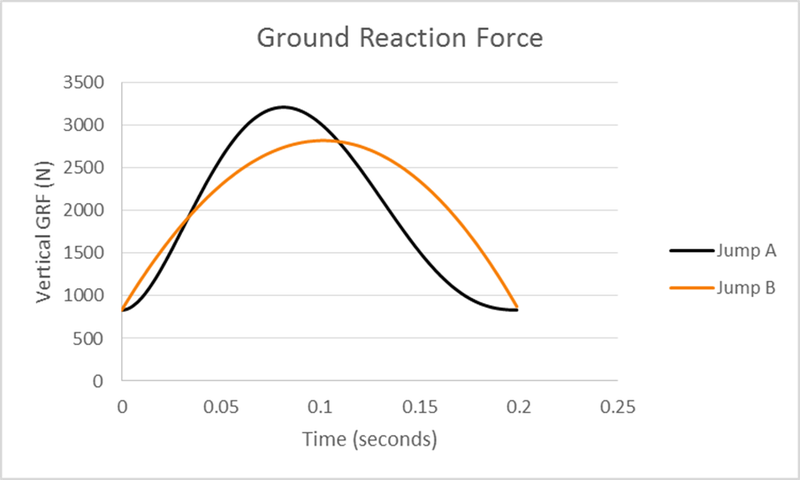

GRF vs. Time





Position vs. Time





Velocity vs. Time





Acceleration vs. Time







Comment on your findings:
